Industry: Paper Manufacturing
Lead Time: 12 Weeks
Component: Drying Section Gear (Cast Iron, 1820mm OD)
Lamond & Murray was recently commissioned to manufacture a large gear for the drying section of a paper mill, a crucial component within a high-speed production environment. With tight tolerances, legacy measurements, and no existing drawings, this project showcased our team’s ability to deliver precision-engineered results from sample-based reverse engineering.
Project Overview
The client supplied a sample gear for measurement, as no technical drawing was available. From this, Lamond & Murray produced a detailed engineering drawing to guide the manufacturing process.
The job included:

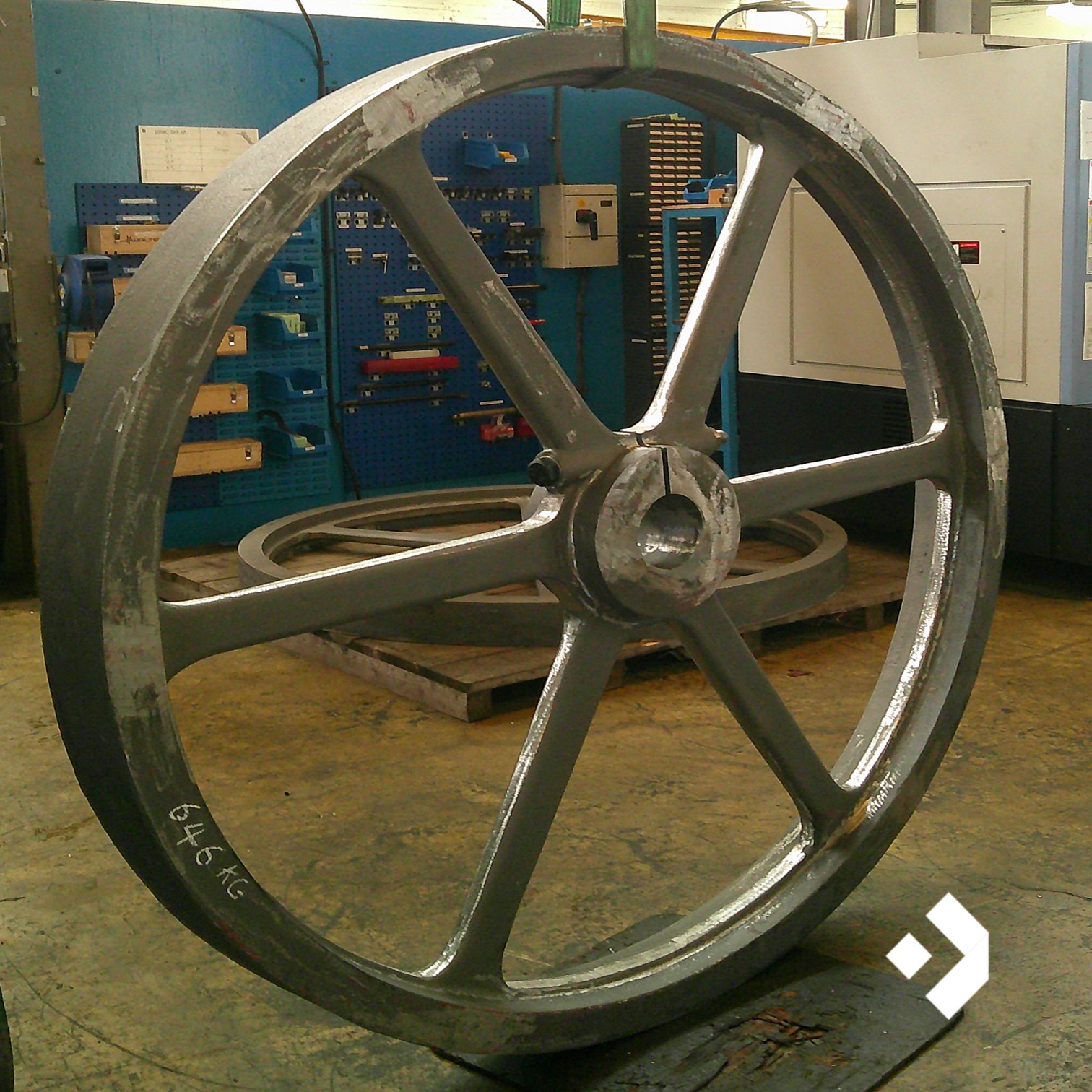

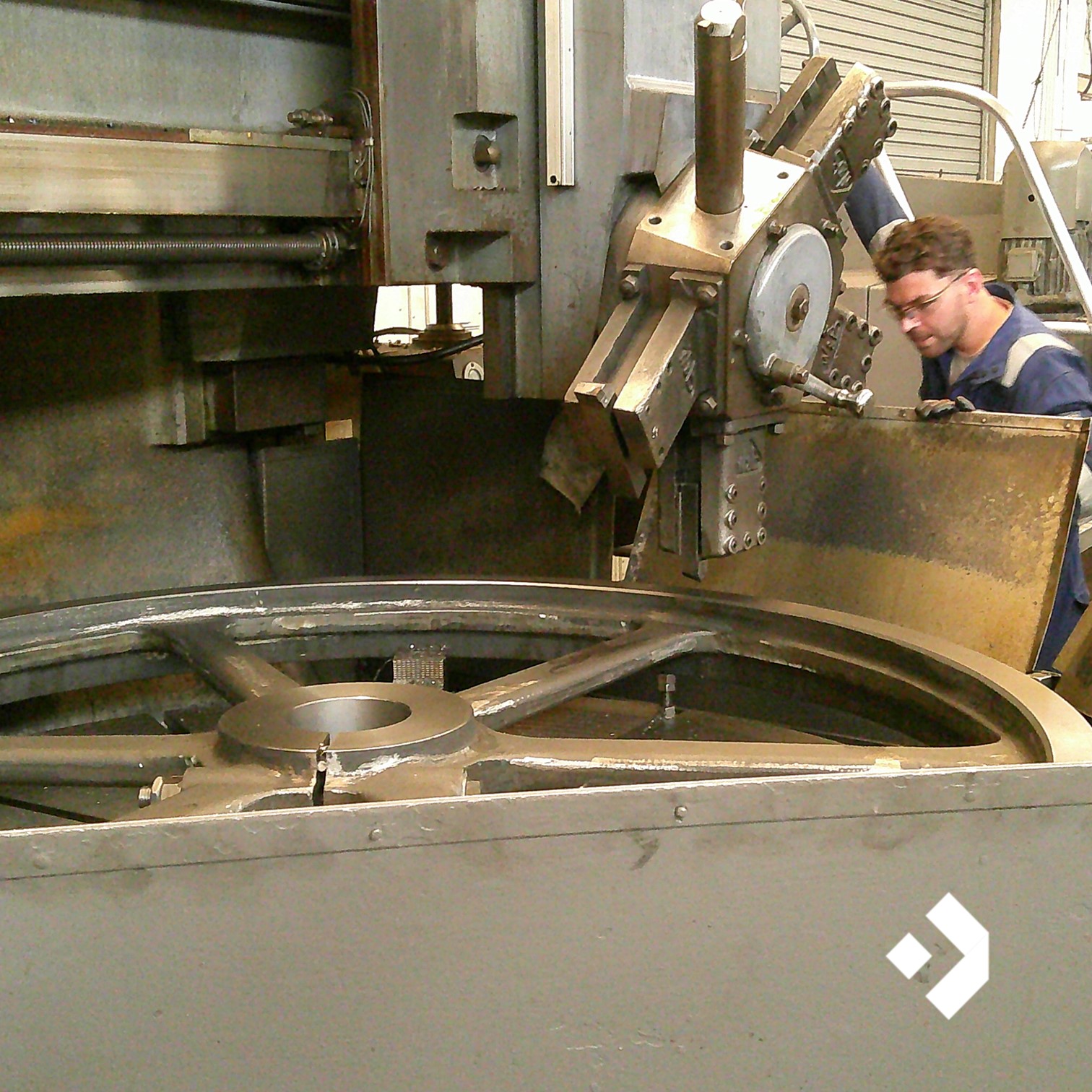

- Turning a cast iron blank with an impressive 1820mm outside diameter

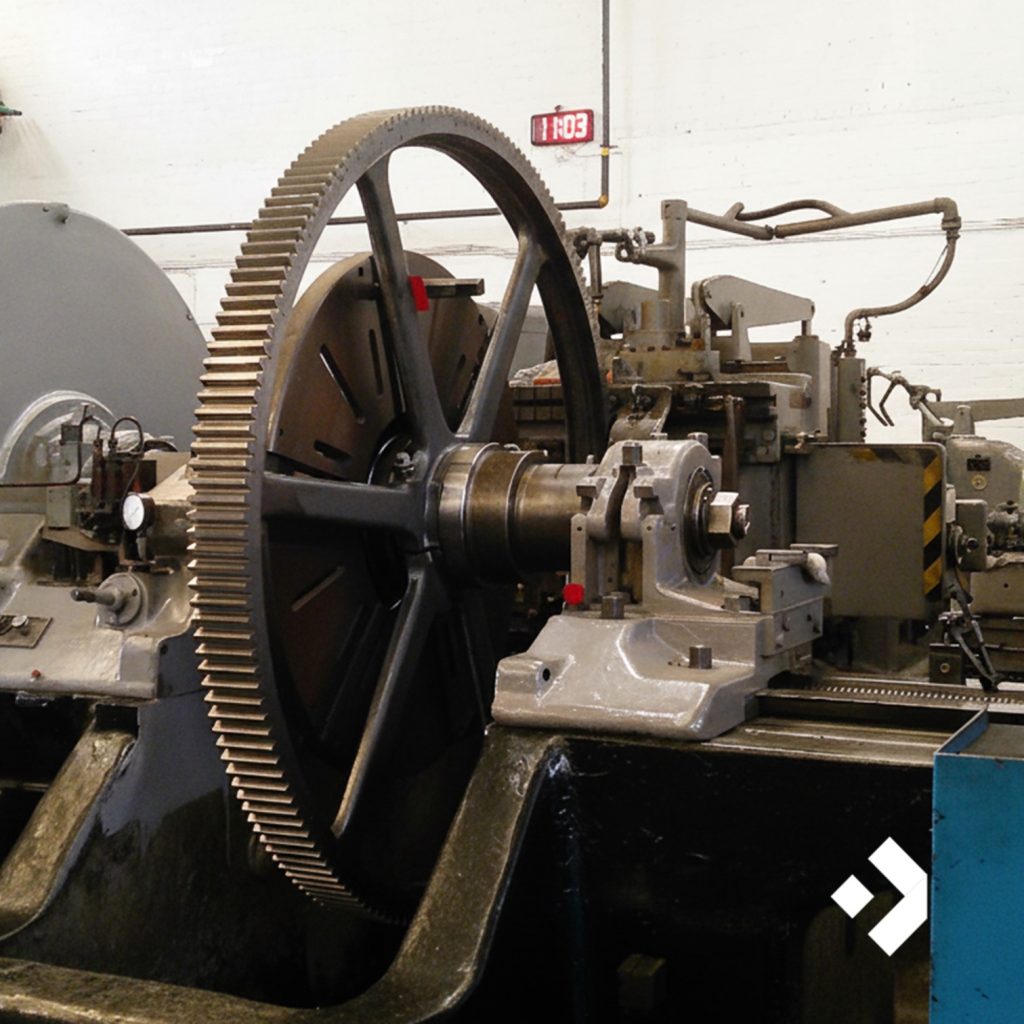

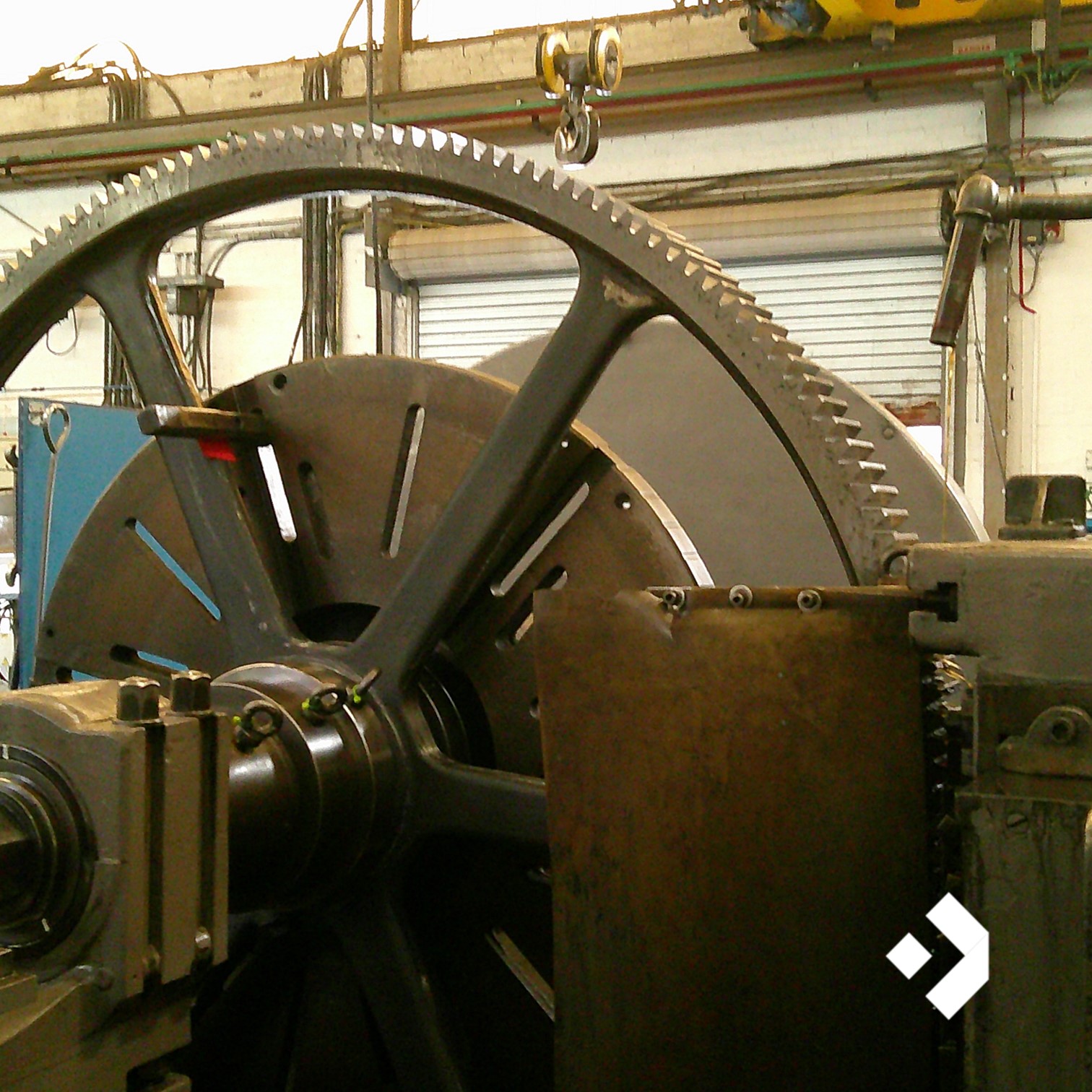

- Gear cutting 180 teeth at 10 MOD, replicating the original geometry to exact specifications
- Full dimensional inspection and validation throughout production
Our in-house capability to handle both large cast iron components and precision gear cutting made this a seamless process from start to finish.
Project Outcome
- Gear delivered within the 12-week timeframe
- All dimensions and tooth profiles matched to original part
- Repeat orders secured, confirming customer satisfaction and trust
Key Highlights
This project stood out due to the sheer size of the component and the accuracy required. Turning cast iron at this diameter requires specialised machinery and skilled operators. Additionally, cutting 180-tooth 10 MOD gear profile from a casting demands tight control of alignment and surface finish – critical for smooth operation in the drying section of a high-speed paper machine.
Why Choose LAMOND & MURRAY DEXIS
The client had worked with LAMOND & MURRAY DEXIS previously and returned due to:
- Proven ability to reverse-engineer from physical samples
- Confidence in gear cutting capability and large component handling
- Competitive price and lead time compared to market alternatives
