Industry: Defence
Lead Time: 6 Weeks
Project Type: Custom Gear Cutting – Worm Wheel Production
LAMOND & MURRAY DEXIS recently completed the manufacture of a precision-engineered worm wheel for a long-standing client in the defence sector. This project formed part of an ongoing series of repeat orders, with the customer relying on our expertise, competitive lead times, and consistent product quality to meet strict technical requirements.
Project Overview
This project focused on producing a worm wheel for the customer’s gearbox, a critical component in a defence-related application. The client provided a historical reverse-engineering drawing, from which the worm wheel was to be manufactured with complete accuracy.
Key Highlights
- 60 teeth
- 2 module pitch
- 20° pressure angle
- Material: BS1400 PB2 (phosphor bronze)

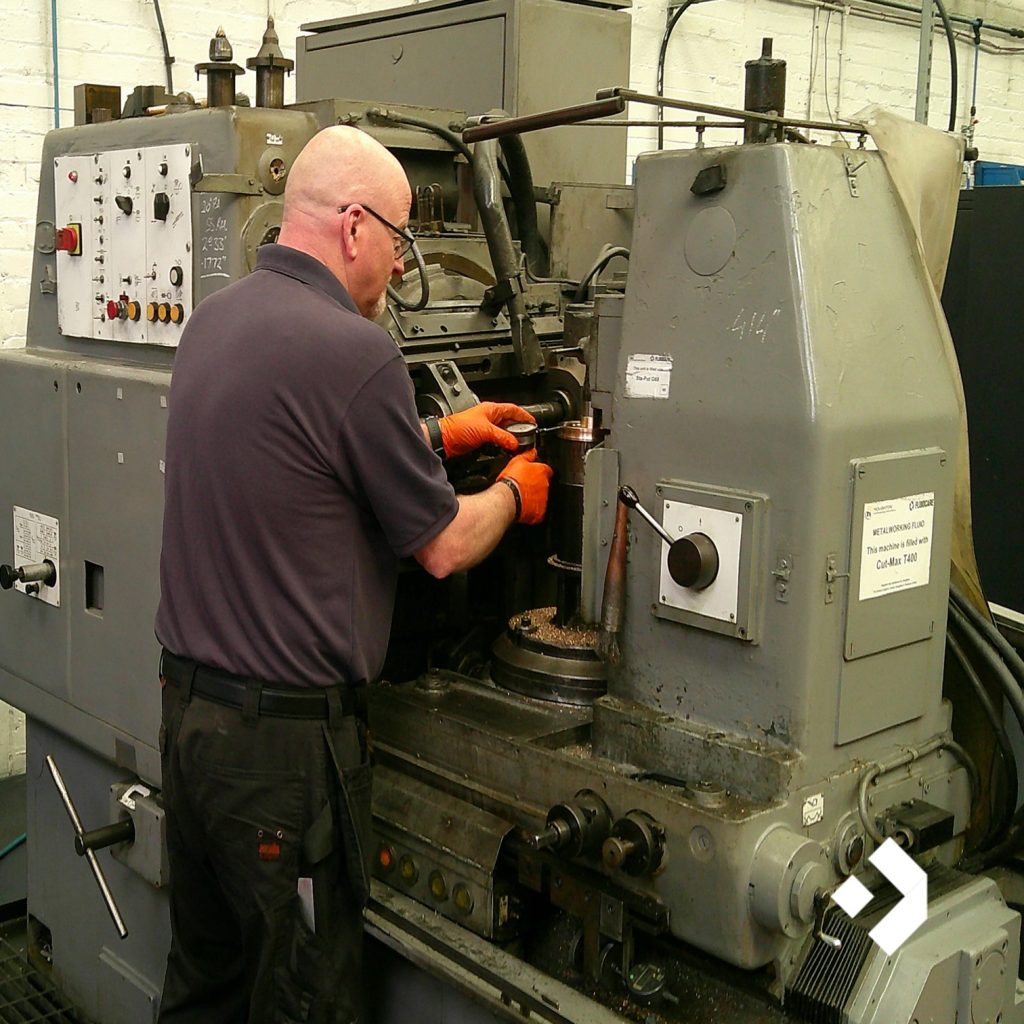

Using our Modul 250 gear cutting machine, our engineers set up the job with precision, preparing the hob for gear tooth cutting. The process was captured, demonstrating the cutting of the worm wheel teeth in real time.
The Solution

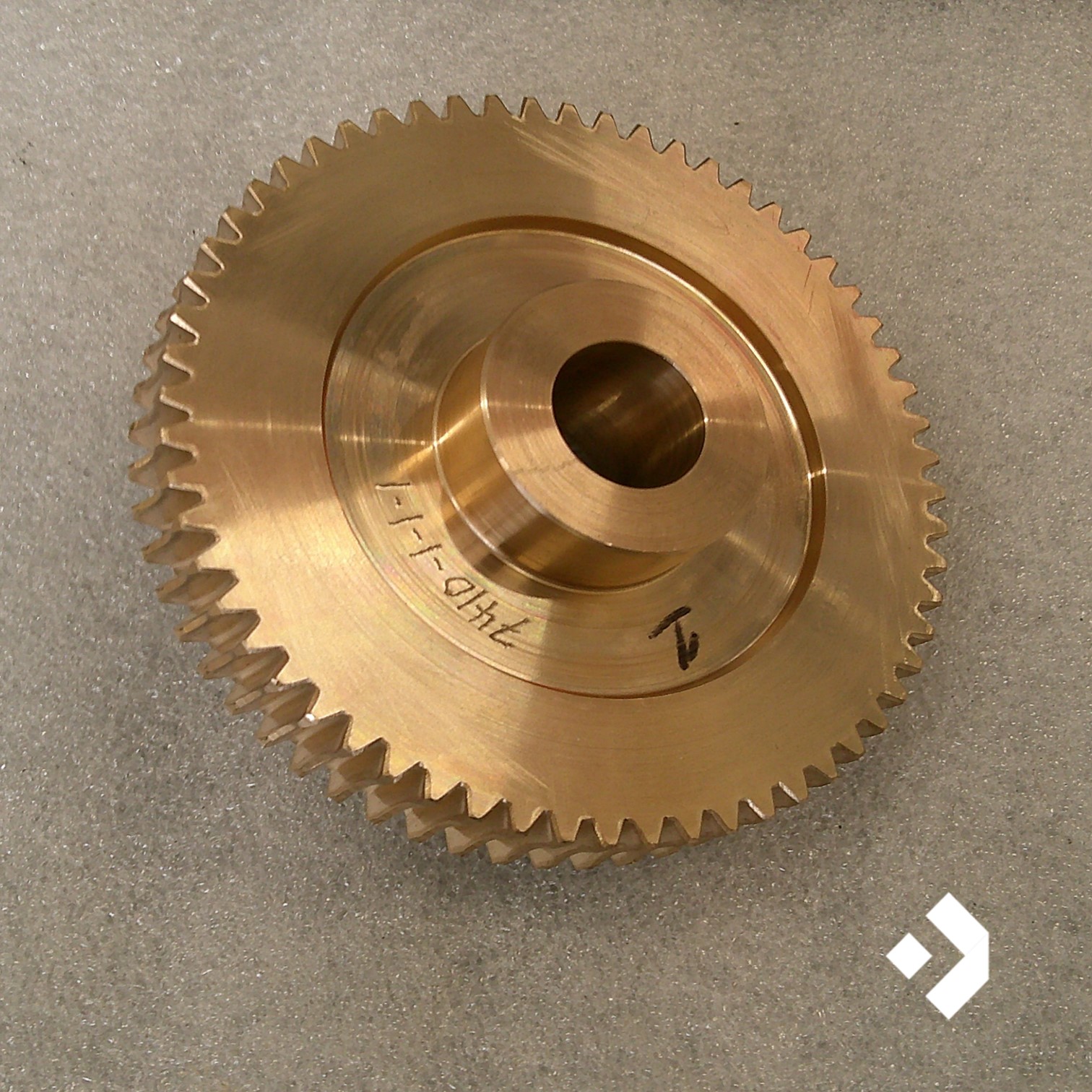

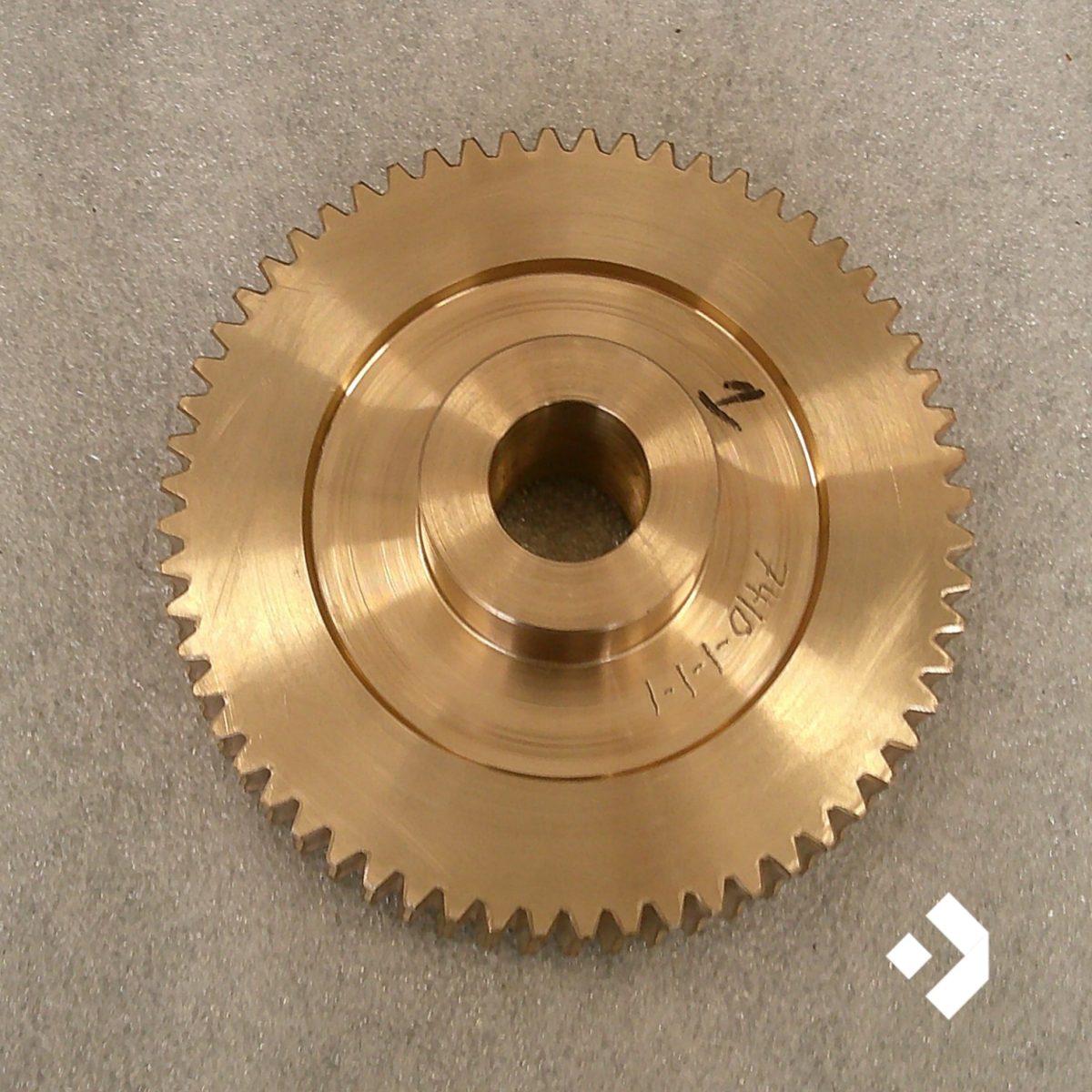

The Lamond & Murray team meticulously prepared the machine and cutting tools to ensure perfect alignment and tooth formation, A hob was used to cut the gear teeth, ensuring a smooth and precise profile throughout the entire 60-tooth cycle. Upon completion, the finished worm wheel underwent inspection before being dispatched, meeting all client specifications and tolerances.
This project highlighted the versatility of our Modul 250 gear cutting machine, which is capable of producing a wide range of gear types, from spur and helical to specialised forms like worm gears, Our in-house capability to cut gears to custom specification, even from legacy drawings, is a key advantage in supporting critical industries like defence.
The client continues to place repeat orders with Lamond and Murray due to our proven track record of high-quality workmanship, reliable turnaround times, and competitive pricing. For industries where precision and trust are non-negotiable, our team delivers consistently.
