Gear grinding
Lamond and Murray have 2 state of the art Gleason Phauter gear grinding machines which are situated in a separate temperature controlled building.Both machines are suitable for grinding one off's or small to medium sized batches

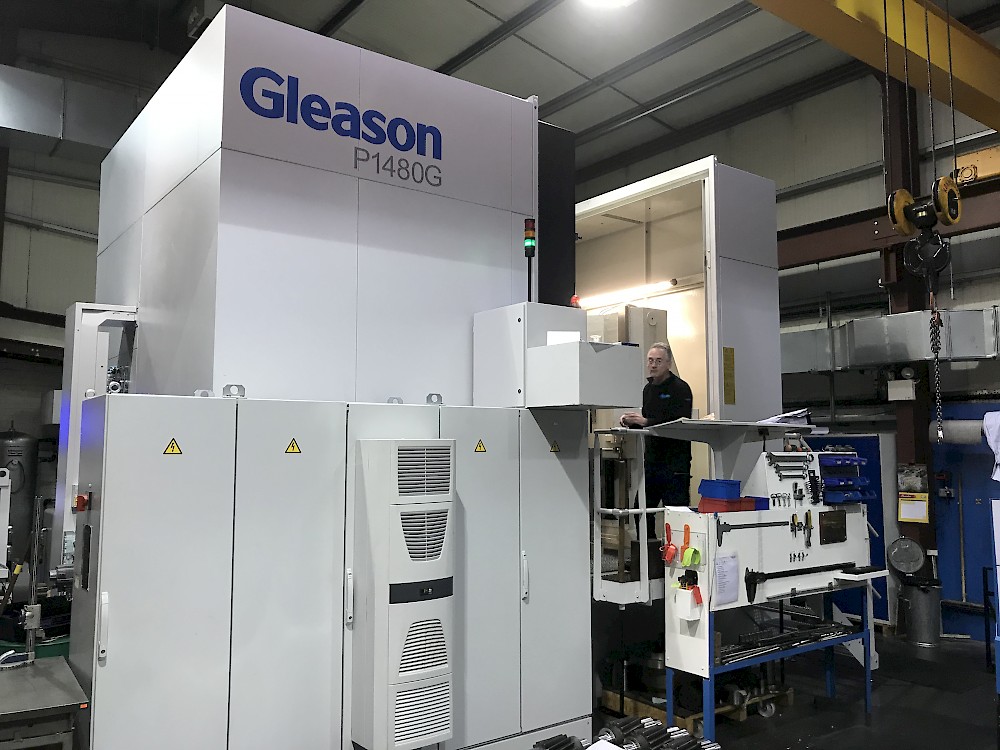

Gleason Pfauter P1480 Pg Profile Gear Grinder
Specification
Situated in a temperature controlled purpose built facility this machine is capable of grinding gears to quality DIN 3
| Capacity | |
|---|---|
| Maximum diameter | 1480mm |
| Maximum pitch | 30 mod |
| Maximum face width | 1000mm |

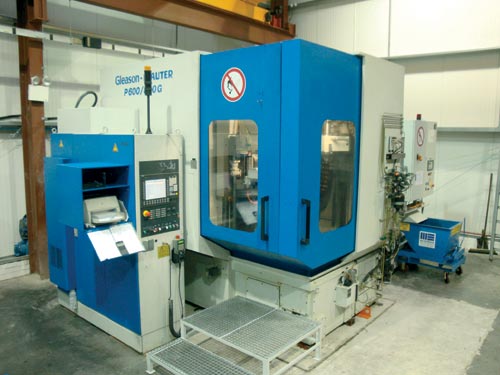

Gleason Pfauter P600/800G Profile Gear Grinder
Specification
Installed in 2008 this machine complements the larger P1480 grinder, it also has the added benefit of grinding internal gears.
| External Capacity | |
|---|---|
| Maximum diameter | 800mm |
| Maximum pitch | 14 mod |
| Maximum face width | 600mm |
| Internal Capacity | |
| Maximum diameter | 860mm |
| Maximum pitch | 8 mod |
| Maximum face width | 200mm |
